100 Days Over the South Pole

A science balloon floats closer to the stars.

Super-pressure balloons—like this one being inflated in New Zealand last May—can stay aloft longer. Scientists want to use them at the South Pole, where they might circle over the continent 100 days while observing deep into the universe. (NASA/Bill Rodman)
Air & Space Magazine | Subscribe

Christopher Walker had visited Antarctica for more than a decade before its frustrations finally turned him gray. From 1994 to 2005, the University of Arizona astronomer traveled to the South Pole during most southern summers to install and service a telescope that studied the interstellar medium—the wisps of gas and dust that permeate the space between the stars.

In October 2011, though, Walker led a team to Antarctica to deploy a new telescope to study that space—except this time it wouldn’t be installed on the icy terrain, it would be high above it, carried aloft by a giant helium-filled balloon. Eight times the team trudged to the launch pad outside McMurdo Station, the continent’s largest settlement, arriving in the middle of the night (although the sun was up around the clock) for hours of system checks and other preparations before an early morning launch attempt. Stiff breezes scrubbed the first seven tries.

“I would Skype home every couple of days or so, and after I was there a couple of months, my kids said, ‘Dad, what’s going on? Your hair is turning white!’ ” Walker recalls. The balloon and its telescope, known as the Stratospheric Terahertz Observatory (STO), finally flew on the eighth try and stayed aloft for 14 days. But a follow-up flight attempt with STO-2 in 2015 was even more distressing—recalcitrant winds kept it grounded. The observatory spent the long, dark winter in storage and finally took to the skies the following summer—on the first try.

Balloons are studying the dusty, dim interstellar medium.
Balloons are studying the dusty, dim interstellar medium. (ESO/APEX/ATLASGAL/NASA/GLIMPSE/ESA/PLANCK)

“It sounds hard, and it is, but everyone who’s been down there on one of these campaigns wants to go again,” Walker says. “It’s the hardest thing I’ve ever done in my professional life. But it’s also the most rewarding.” Walker and his team are hoping for even greater rewards as they prepare for the next balloon mission. This one will be like no other. After its targeted launch, in December 2021, a telescope called GUSTO will float for at least 100 days, its mission designers hope, almost twice as long as the longest flight to date. It will circle Antarctica several times before changes in the seasonal winds push it out over the Southern Ocean.

The $40 million mission, for which the two STO flights were precursors, was selected by NASA’s Explorers Program, which funds the development and launch of small and medium-size space science missions. GUSTO—a compound acronym for the Galactic/Extragalactic ULDB (Ultralong-Duration Balloon) Spectroscopic Terahertz Observatory—will be its first balloon project. “I call it a ballooncraft,” says Walker, GUSTO’s principal investigator. “We’re helping NASA write the rulebook for this new kind of mission. Not all science can be done from a balloon, but a lot can. We’re blazing a trail for the future.”

That trail began in the warmer climes of southern Arizona, where astronomers were looking for a new way to study the interstellar medium, which contains the building blocks for just about everything around us. “The interstellar medium is where all stars, planets, and people came from,” says Walker. “Just 4.7 billion years ago, we were all the interstellar medium.”

Walker was born in 1957, “during the golden age of space exploration,” he says. Like many who grew up in that era, he yearned to be an astronaut, and began the process by getting his doctorate in astronomy, along with training in electrical engineering and optics. “To build an observatory, you need to have your foot in all these doors,” he says. “You need to understand the science, how to collect the light, how to process that light, how to interpret the data.” His astronaut dreams were dashed when, partway through the screening, he was knocked out of the competition for taking a medication he needed to qualify for enduring the extreme temperatures in Antarctica.

While he analyzes data from STO (the team expects to publish its results early this year) and prepares GUSTO for flight, he’s planning even further into the future with a next-generation balloon experiment, the Large Balloon Reflector. Walker and a colleague came up with the idea in a Bangalore airport parking lot and scribbled the design on a napkin. The concept is a balloon in a balloon: A sphere with one hemisphere coated in reflective aluminum will ride to the stratosphere inside a larger, transparent carrier balloon. The outer balloon provides a steady platform for the lightweight “mirror,” which in turn allows the reflector to be much larger—10 meters (32 feet) or more, compared to current science balloon designs, which can carry mirrors only about one meter wide. Incoming light is focused onto a receiver in the inner balloon. The University of Arizona patented the technology and launched a small company, FreeFall Aerospace, to commercialize the idea.

Along with GUSTO, these missions should help Walker and other astronomers better understand how material begins to coalesce to form cold, dark molecular clouds. These clouds can span many light-years; the material sometimes fragments into clumps that then collapse to ignite into hundreds or thousands of stars. “We live on a planet next to a star, but we don’t know how that happened,” says Craig Kulesa, another University of Arizona astronomer and Walker’s deputy on GUSTO. “If you have a really dark sky, where you can see the Milky Way, it looks like it has holes in it. Those dark patches are not an absence of material, but clouds of cold, dark material. These are the nurseries in which stars are born…. But we don’t really understand how those clouds give birth to stars. We don’t even know how the clouds themselves came to be.”

To find the predecessors to these clouds—faint smatterings of gas and dust that are just starting to agglomerate—the astronomers try to map particular atoms and molecules that emit energy at wavelengths between the infrared and radio bands of the electromagnetic spectrum. Known as the far-infrared, the emissions are also called terahertz waves, after the frequency range in which this radiation falls. Water vapor in Earth’s atmosphere absorbs radiation in those bands of energy, though, preventing it from reaching the ground. The only way to see it is to tote the receivers to ground-based locations that are high and dry, or to use rockets or balloons to lift them above the atmosphere. So in the mid-1990s, the Arizona team hit the trail for Antarctica. The continent, a vast desert with almost no precipitation, has such low humidity that visitors sometimes get nosebleeds even when they guzzle water.

On their first mission, the team installed a 5.5-foot ground telescope known as AST/RO next to Amundsen-Scott South Pole Station, where it mapped a swath of the Milky Way. A second instrument, the High Elevation Antarctic Terahertz (HEAT) telescope, installed on a 13,000-foot-high ridge about 600 miles from the pole, is mapping even more of the galaxy. With the balloon missions, astronomers hope to get above even the trace water and heat on the ground in order to see the faint glow of the carbon, nitrogen, and oxygen atoms in the Milky Way and the Large Magellanic Cloud, a small neighbor galaxy.

A large scientific balloon can hover at altitudes of 110,000 feet or higher—above 99.5 percent of the atmosphere—and carry payloads of up to three tons. When it lifts off in the dense air at sea level the balloon looks like an exclamation point. As it reaches the barely-there wisps of air at higher altitudes, the balloon expands into that empty space; its diameter grows to more than the length of a football field.

Antarctica offers plentiful advantages for these flights, says Dwayne Orr, the program manager for NASA’s Columbia Scientific Balloon Facility in Palestine, Texas, which launches 10 to 15 balloons a year from locations around the world. “During summer, the sun’s always up, so if you use solar power you can maintain power to the payload,” he says. “And the balloon doesn’t cool and droop at night, so you can maintain a good altitude profile. Those things give you long-duration capability.” The prevailing winds form a counterclockwise vortex around the continent, so balloons circle Antarctica for weeks, and the payload can be made to parachute to the ground for recovery at any time during the flight.

Science balloons carry telescopes

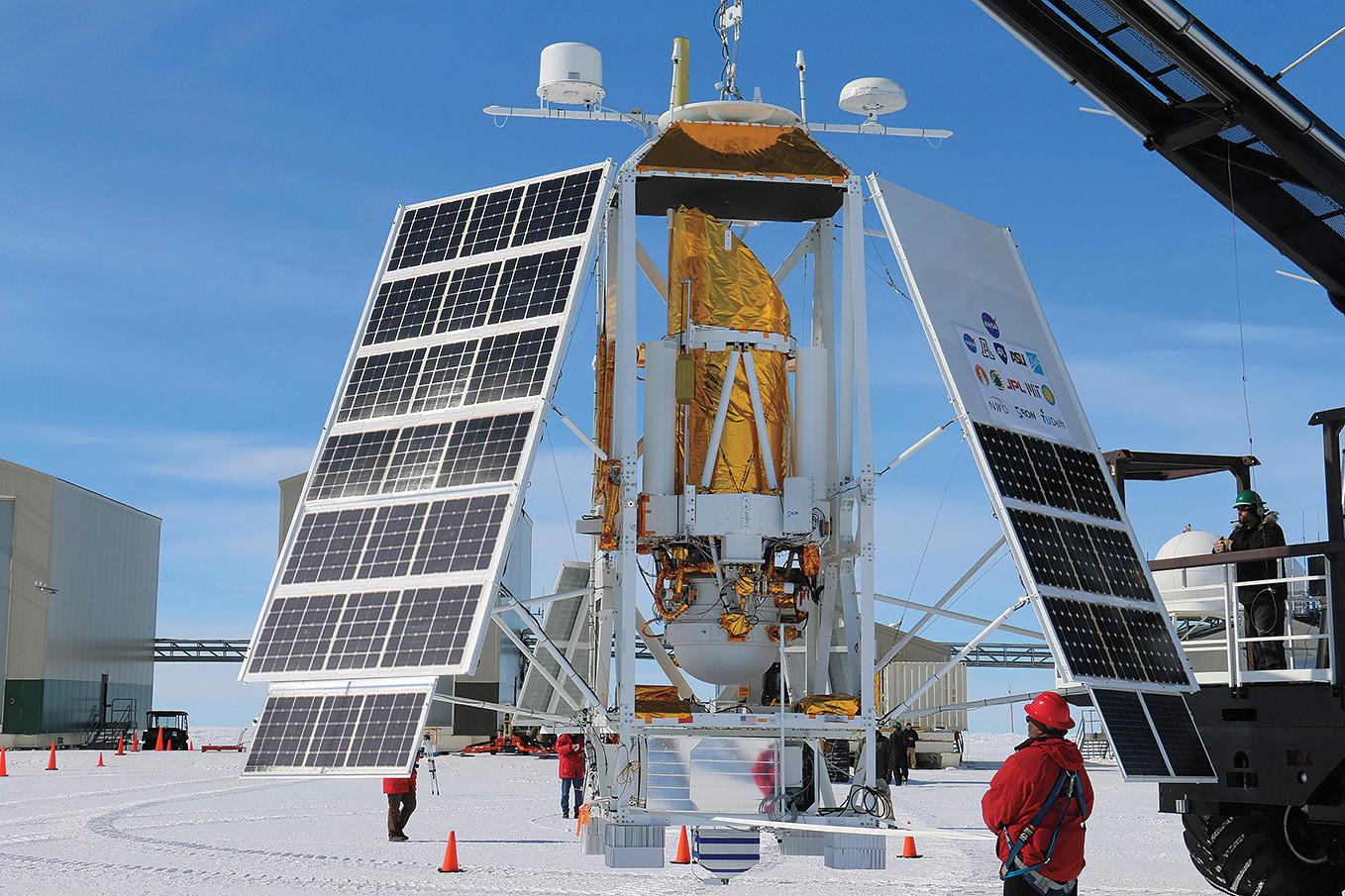

Science balloons carry telescopes like the Stratospheric Terahertz Observatory 2 into the thin air above the South Pole. (University of Arizona/Jhuapl)

The first Antarctic balloon mission started with a supernova. When an exploded star was detected in the southern sky in February 1987, astronomers realized they would be able to best observe its gamma-rays over the South Pole. Scientists from the U.S. Air Force Geophysics Laboratory and the Defense Advanced Research Projects Agency (DARPA) modified a gamma-ray instrument that was meant to fly on the space shuttle and sent it up in a balloon over the Antarctic. After its launch, it collected “excellent data,” according to the Air Force report, for three days before a faulty power system ended the mission. Calling the project a “highly successful venture,” the team hosted a workshop for the National Science Foundation that laid the logistical groundwork for Antarctic balloon science.

Since then, astronomers have launched an alphabet-soup of balloon missions from the Antarctic ice, including CREAM and TRACER, which studied cosmic rays; BLAST, which looks at how magnetic fields affect star formation; BOOMERANG mapped tiny variations in the temperature in the “afterglow” of the Big Bang; and ANITA has looked for radio waves from cosmic-ray neutrinos. The list includes the two STO missions, which helped mature the terahertz detector technology and give the team experience in balloon flights before launching the more challenging, long-duration GUSTO payload.

Back in Arizona, the scientists are about to start building and testing GUSTO. Its two-ton payload will measure 20 feet wide by 20 feet high. It will consist of a 40-inch telescope that will direct light to a series of superconducting instruments contained inside a cryostat—a container like a thermos bottle holding about 33 gallons of liquid helium cooled to -452 degrees Fahrenheit.

The science package will include a new telescope built in Tucson, as well as detectors made by Arizona State, NASA’s Jet Propulsion Laboratory, the Massachusetts Institute of Technology, and the Netherlands Institute for Space Research. The instruments, along with solar panels, batteries, and communication gear, will be carried in an aluminum-frame gondola developed by the Johns Hopkins University Applied Physics Laboratory.

Once assembled, NASA will test the payload in a vacuum chamber at its Goddard Space Flight Center in Maryland (a step that’s common for a spacecraft but rare for a balloon). Then the payload will travel to the facility in Texas for a hang test—an evaluation of the instruments, communications and power systems, and the structures that connect the gondola to its balloon and parachute.

In autumn of 2021, NASA will crate the assembled package for shipment to Antarctica (via California and New Zealand), which represents another first for a balloon mission. “In the past, after testing you would tear it apart, put it in boxes, and put it on a slow boat to New Zealand. It was like a giant kit,” Walker says. “You were under a lot of time pressure to get everything together at the launch site. It was quite tedious. But now, with a multimillion-dollar mission, we’re trying a new paradigm. We’ll integrate and test it [in the United States], then lay it on its side in a special shipping container and ship it ready to go. When it gets there, we can add the solar panels and it’ll be ready to fly in a week or two. That should reduce the wear and tear on the people.”

Those people—usually about 16 of them—head for Antarctica around late October, more than a month before the launch season opens (“There is a lot to do, and you don’t want to miss the McMurdo Halloween party!” says Walker), and they may be away from home for months. Once there, they live in dormitories at McMurdo and commute to the launch site, about 45 minutes away on the Ross Ice Shelf.

NASA’s Dwayne Orr waits for the launch of a science balloon he tested in Texas. (Courtesy Dwayne Orr)
At the University of Arizona, Christopher Walker pushes advances in balloon science. (Christopher Walker/NIAC)
GUSTO’s super-pressure balloon will likely break endurance records on its path around Antarctica. (NASA)
GUSTO’s super-pressure balloon's path around Antarctica (NASA)

“Everybody’s reaction to being there is different,” says Brian Duffy, the University of Arizona operations manager for both STO and GUSTO. “People who are there pretty much out of duty tend to hate it—they miss their families, especially at the holidays. I understand that. But I’ve been wanting to go there since I was eight. Robert Scott’s hut is right there, and you can see seals and penguins out on the sea ice. It’s a really cool experience.”

Duffy was a Marine Corps logistics officer and a marine technician for the Scripps Institution of Oceanography before he turned to astronomy and joined the balloon team in 2008. He was in Antarctica for all three STO launch seasons. “Antarctica is a harsh, tough environment to operate in, but you have to be philosophical about it,” he says.

“One thing you have to get used to is the lack of alone time,” says Kristina Davis, a graduate student at Arizona State University who has helped develop the detectors and is also working on the BLAST balloon mission. “But you’re down away from everything. You’re in this bubble. For a lot of people it’s a time to reflect.... A lot of big life decisions get made there.”

Team members find their own ways to cope with the isolation. During the STO-2 campaign, for example, Davis and some friends organized weekly viewings of skiing and mountain-climbing movies. And McMurdo hosts parties at Thanksgiving and Christmas, plus an outdoor music festival, called Icestock, for New Year’s, with performances by the support staff or visiting scientific teams.

One lesson that everyone learns during the long hours is that you can’t leave home without it—whatever “it” may be. “When you’re at home, if something breaks it’s easy to buy a replacement,” says Pietro Bernasconi, a research scientist at Johns Hopkins and operations manager for the GUSTO gondola. “Down there, it can take up to a month to get a replacement, so you have to be self-sufficient.”

Once the payload is ready, the team begins final preparations for deployment. Launch is usually scheduled for early morning, when the winds are calmest. Winds of more than a few knots could cause the payload to sway and possibly hit the ground or launch equipment as the balloon is released, and wind shear at heights of up to a thousand feet could rip the balloon apart. At T-minus a few hours the team uses giant cranes to maneuver the payload into position. “We lay out the balloon, check everything again, then we wring our hands and make sure we’re happy,” says Dwayne Orr. They pump the helium into the balloon, which takes about an hour, then release it for the several-hour climb to the stratosphere.

GUSTO will be carried aloft by a new type of balloon. Called a super-pressure balloon, it has a thicker skin and a different pressure control system than the balloons that have launched most research missions to date. Among other advantages, the new design can maintain a constant altitude as the temperature changes without needing to release helium or ballast. (Though GUSTO will launch near the South Pole in summer where there’s no nighttime cool-down, it will start to experience temperature changes during the weeks or even months it drifts over the continent.) That allows the balloon to stay aloft far longer than older designs. The longest flight of any NASA scientific balloon is 55 days, a record set in 2013 (this balloon, SuperTIGER, launched again for a new attempt last December); GUSTO should operate for 100 to 170 days.

During launches, the mission’s science team observes from a safe distance, enjoying the “whoosh” as the balloon is released. “There’s something magical about seeing it take to the sky,” says Kulesa. “It’s part relief, part exhilaration.” Davis adds, “We watch it for five or 10 minutes, then everybody runs inside to talk to it to make sure everything is still working okay.”

Craig Kulesa

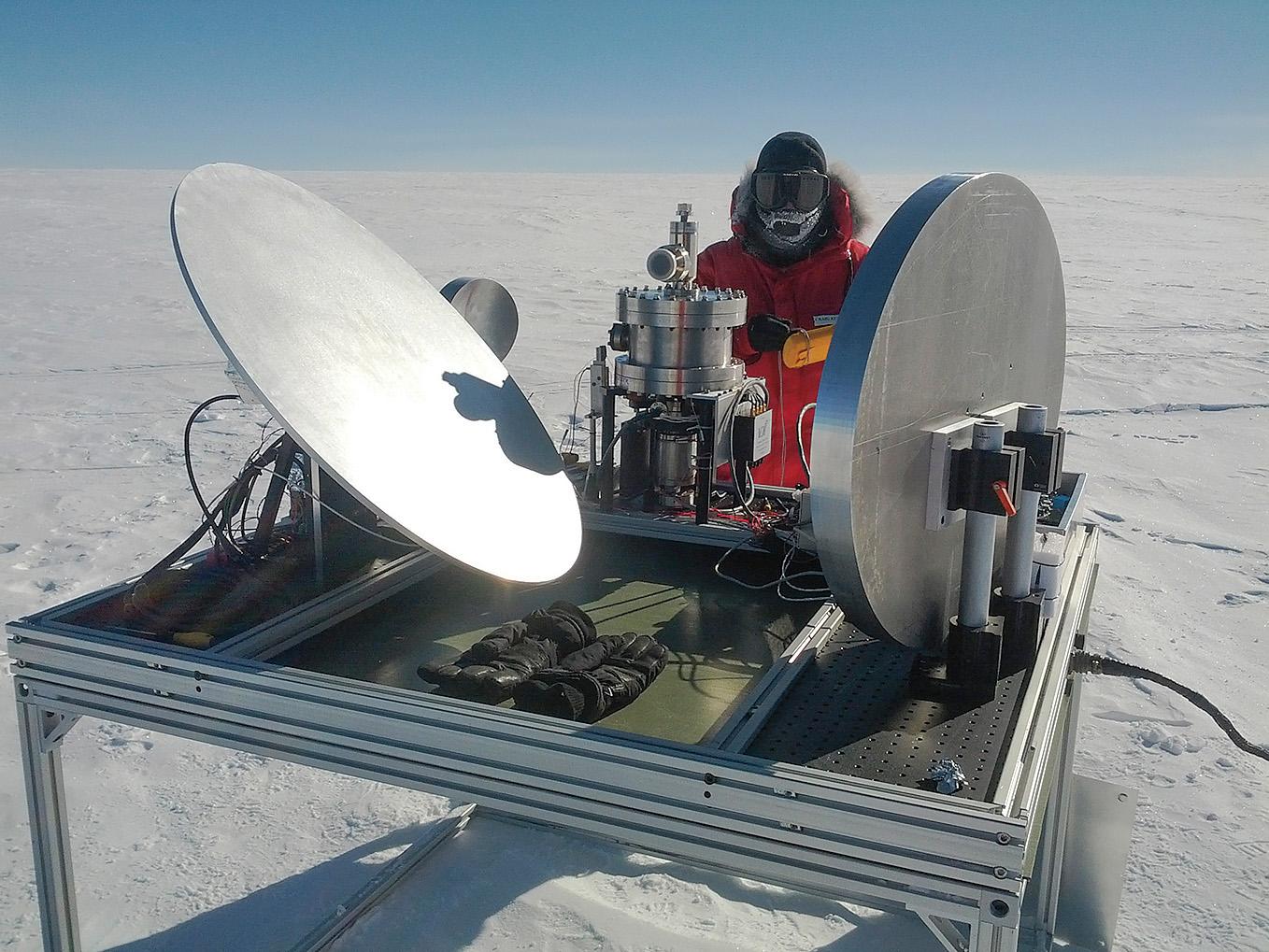

Craig Kulesa, bundled up in a mask, tinkers with HEAT, a ground telescope operated by the University of Arizona’s Antarctica team to map the gas and dust in the Milky Way. (Courtesy Craig A. Kulesa)

And that leads to another difference between GUSTO and most other balloon missions. Since missions have flown for a few days to a few weeks, they’re usually operated from a small control center right at McMurdo and one other remote station in the U.S. “We didn’t do a very good job planning ground control for STO-2,” says Bernasconi. “We always needed somebody on the ground to monitor systems and send commands. But we only had one or two people who could do that. They were [in McMurdo] for 22 days, with very little sleep. It was definitely a taxing thing. You can’t do that for a hundred-day mission.”

Instead, GUSTO will be controlled from several stations around the United States, starting with a NASA team in Texas and engineers at Johns Hopkins in Baltimore. Scientists will monitor the experiments from control centers in Antarctica and at each of the instrument design centers: in Arizona, Massachusetts, Maryland, and the Netherlands. Each site will operate around the clock, keeping in touch with the ballooncraft through NASA’s Tracking and Data Relay Satellite network and Iridium communication satellites, with GUSTO transmitting its observations in real or near-real time. Most other balloon missions have recorded their data on hard drives for recovery when the payload parachutes to the ground. (STO did both.)

Recovery might not be possible for GUSTO, though. As the southern winter progresses, the polar vortex will weaken, and after three or four circuits around the continent, GUSTO will leave Antarctica and drift northward. That will provide a scientific bonus, allowing its instruments to see more northerly regions of the Milky Way galaxy. But it makes the payload’s fate uncertain. “No mission from Antarctica so far has left the continent,” says Bernasconi. “We don’t know where it will end up. There’s about a 50 percent chance it will drift back over Antarctica. If not, it’ll likely drift over South America and southern Australia. But we’re prepared to lose the entire payload in the ocean. It’s similar to a space mission. Once you launch a spacecraft, you know you’ll never see it again.”

That will mark the end of the trail for GUSTO—a stress-free splashdown that just might keep a few more hairs from turning white.
